EMS-minder demo boards

Product :	Demo board / Evaluation board / DIY product / Test fixture /
	Programmable controller

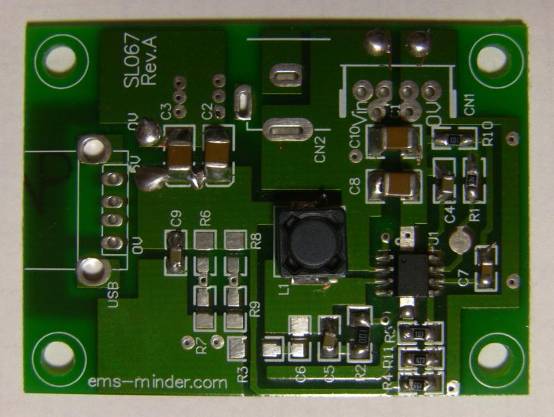

	Solar power application ● DC to DC converter ● Input 7V - 25V ● Output voltage : optional ( 3.3V / 5V / 9V ... ) ● PCB size : 56x41mm
SL067A

	Solar power application ● DC to DC converter ● Input 7V - 25V , with DC jack or connector input ● Output 5V 1A , with horizontal USB A type socket ● PCB size : 56x41mm
SL067H

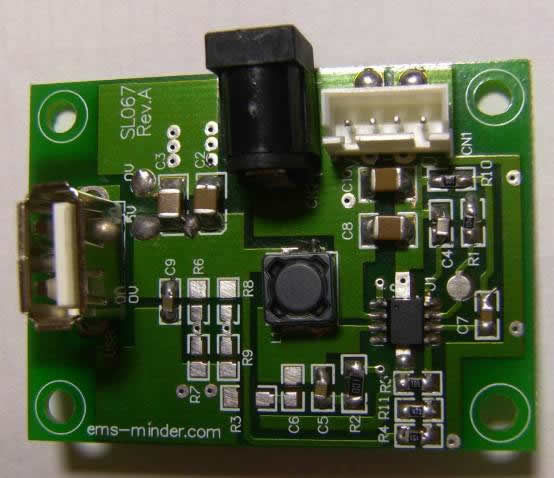

	Solar power application ● DC to DC converter ● Input 7V - 25V , with DC jack or connector input ● Output 5V 1A , with vertical USB A type socket ● PCB size : 56x41mm
SL067V

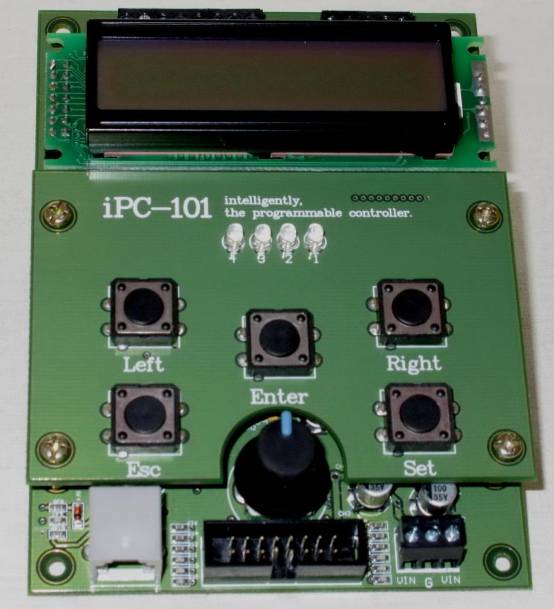

Simplified programmable logic controller
● Easy-learning program language
● Key in Program by on-board switch and LCD display
● 4 digital Inputs and 4 digital outputs controlled by program
● Support functions : input , output , timer , jump , counter
● Unit size : 89Wx122Lx25H mm
● example program , ch.4 output="high" for 1 second and read ch.3 input :
DO
OUTPUT
HLLL
OP time
1 sec
CHECK
INPUT *H**
GOTO 03

iPC-101

Solar powered charger & discharger
● Design based on Linear technology LT3652HV
● MPPT ( maximum peak power tracking ) function
● 1A current charger and 5A discharger
● Wide input range : up to 34V
● C/10 charge current termination
● Low battery voltage discharge termination
● LED indication : charge , discharge , fault
● PCB size : 105x48mm
● Design for sealed-lead acid 12V battery / 7.2V LiFePO4 battery ...

SL066
